Dubbo
Apache Dubbo是一个基于Java的高性能开源RPC框架。
特征
- 基于透明接口的RPC
- 智能负载均衡
- 自动服务注册和发现
- 可扩展性高
- 运行时流量路由
- 可视化的服务治理
跑起来
1
2
| # git clone https://github.com/apache/dubbo-samples.git
# cd dubbo-samples/dubbo-samples-api
|
如有不了解git命令的没有关系，请看这里

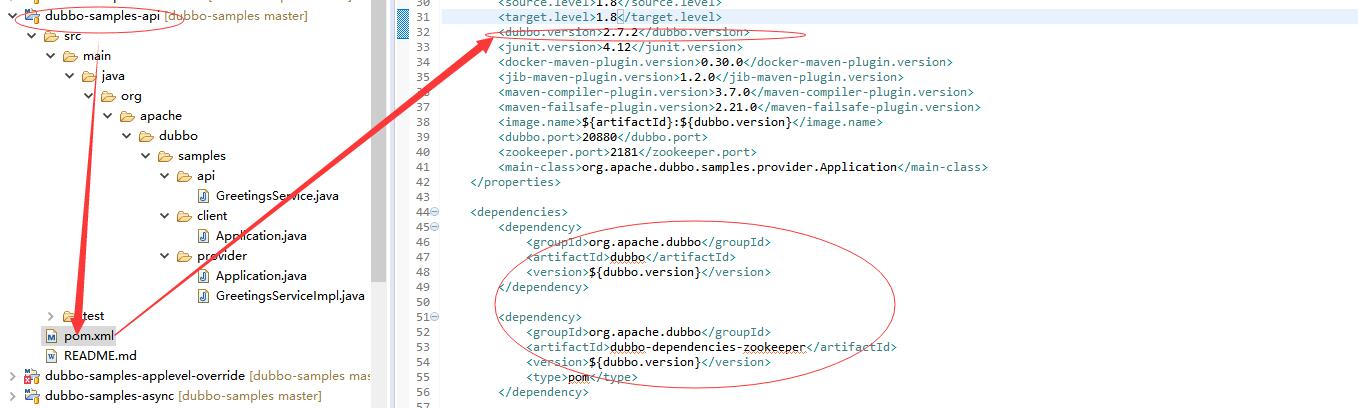

然后我们可以看看这个接口工程的pom文件
定义的接口服务
1
2
3
4
5
6
| package org.apache.dubbo.samples.api;
public interface GreetingsService {
String sayHi(String name);
}
|
- provider看看接口的服务提供者，也是具体实现
1
2
3
4
5
6
7
8
9
10
| package org.apache.dubbo.samples.provider;
import org.apache.dubbo.samples.api.GreetingsService;
public class GreetingsServiceImpl implements GreetingsService {
@Override
public String sayHi(String name) {
return "hi, " + name;
}
}
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| package org.apache.dubbo.samples.provider;
import org.apache.dubbo.config.ApplicationConfig;
import org.apache.dubbo.config.RegistryConfig;
import org.apache.dubbo.config.ServiceConfig;
import org.apache.dubbo.samples.api.GreetingsService;
import java.util.concurrent.CountDownLatch;
public class Application {
private static String zookeeperHost = System.getProperty("zookeeper.address", "127.0.0.1");
public static void main(String[] args) throws Exception {
ServiceConfig<GreetingsService> service = new ServiceConfig<>();
service.setApplication(new ApplicationConfig("first-dubbo-provider"));
service.setRegistry(new RegistryConfig("zookeeper://" + zookeeperHost + ":2181"));
service.setInterface(GreetingsService.class);
service.setRef(new GreetingsServiceImpl());
service.export();
System.out.println("dubbo service started");
new CountDownLatch(1).await();
}
}
|
- 如果没有zk环境可以Multicast 注册中心（下面是通过配置文件配置环境） 用 Spring 配置声明暴露服务
provider.xml：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
| <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<!-- 提供方应用信息，用于计算依赖关系 -->
<dubbo:application name="hello-world-app" />
<!-- 使用multicast广播注册中心暴露服务地址 -->
<dubbo:registry address="multicast://224.5.6.7:1234" /> // ZK配置---> zookeeper://127.0.0.1:2181
<!-- 用dubbo协议在20880端口暴露服务 -->
<dubbo:protocol name="dubbo" port="20880" />
<!-- 声明需要暴露的服务接口 -->
<dubbo:service interface="org.apache.dubbo.samples.api.GreetingsService" ref="greetingsService" />
<!-- 和本地bean一样实现服务 -->
<bean id="greetingsService" class="org.apache.dubbo.samples.api.GreetingsServiceImpl" />
</beans>
|
1
2
3
4
5
6
7
8
9
| import org.springframework.context.support.ClassPathXmlApplicationContext;
public class Provider {
public static void main(String[] args) throws Exception {
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(new String[] {"/dubbo/provider.xml"});
context.start();
System.in.read(); // 按任意键退出
}
}
|
- 服务消费者 consumer.xml：(通过 Spring 配置引用远程服务)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<!-- 消费方应用名，用于计算依赖关系，不是匹配条件，不要与提供方一样 -->
<dubbo:application name="consumer-of-helloworld-app" />
<!-- 使用multicast广播注册中心暴露发现服务地址 -->
<dubbo:registry address="multicast://224.5.6.7:1234" /> // ZK配置---> zookeeper://127.0.0.1:2181
<!-- 生成远程服务代理，可以和本地bean一样使用demoService -->
<dubbo:reference id="greetingsService" interface="org.apache.dubbo.samples.api.GreetingsService" />
</beans>
|
1
2
3
4
5
6
7
8
9
10
11
12
13
| import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.alibaba.dubbo.demo.DemoService;
public class Consumer {
public static void main(String[] args) throws Exception {
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(new String[] {"/dubbo/consumer.xml"});
context.start();
GreetingsService greetingsService = (GreetingsService)context.getBean("greetingsService"); // 获取远程服务代理
String hello = greetingsService.sayHi("world"); // 执行远程方法
System.out.println( hello ); // 显示调用结果
}
}
|
